Clear Gun Foam has been formulated for use primarily for moulding and casting applications requiring a good skin to the finished product. This product is widely used within the film prop industry as it enable safe and durable production of props.
|Polycraft Clear PU Gun Foam ||Unit |
|Mix Ratio By Weight ||3A : 1B |
|Cream Time (100g @ 20°C) ||15 - 25 Seconds |
|Rise Time (100g @ 20°C) ||2 - 3 Minutes |
|Demould Time |
(Components @ 20°C & Mould @ 35°C)
|20 Minutes |
|Full Cure (100g @ 20°C) ||12 Hours |
|Free Rise @ 25°C ||Up To 3x Volume |
|Free Rise Density g/mL ||0.15 - 0.25 |
|Cure Colour ||Off White / Cream |
Clear Gun Foam can free rise up to 3x the original mixing volume, in lower temperature conditions the free rise ratio will decrease.

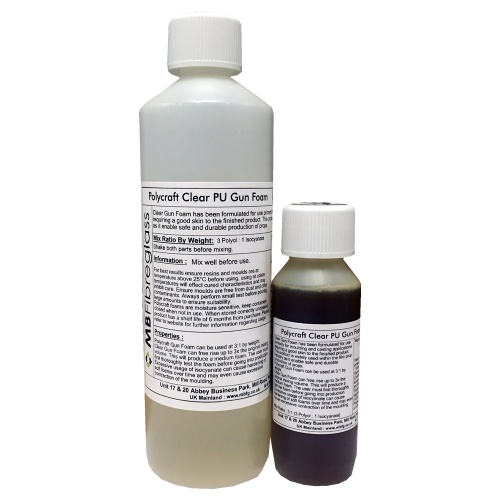

Weight to volume ratio: Example 500g Kit
500g Kit Part A is 375g - This equates roughly to 375ml in volume
500g Kit Part B is 125g - This equates roughly to 125ml in volume
500g kit is roughly 500ml in volume, so to mix a full 500ml at once at the correct working temperature of 25°C the foam will free rise to roughly 1.5 Litres, but if it is not used in the correct working conditions the free rise ratio will decrease.
