*An ever increasing influx of bulk purchases from new customers caused by a global shortage of raw materials and environmental reforms has left us with no choice but to place a cap on sales of the 22kg kits in order to protect stock and keep our regular customer base in supply. If you are a long standing customer and wish to purchase more than one of the 22kg kits please get in touch*

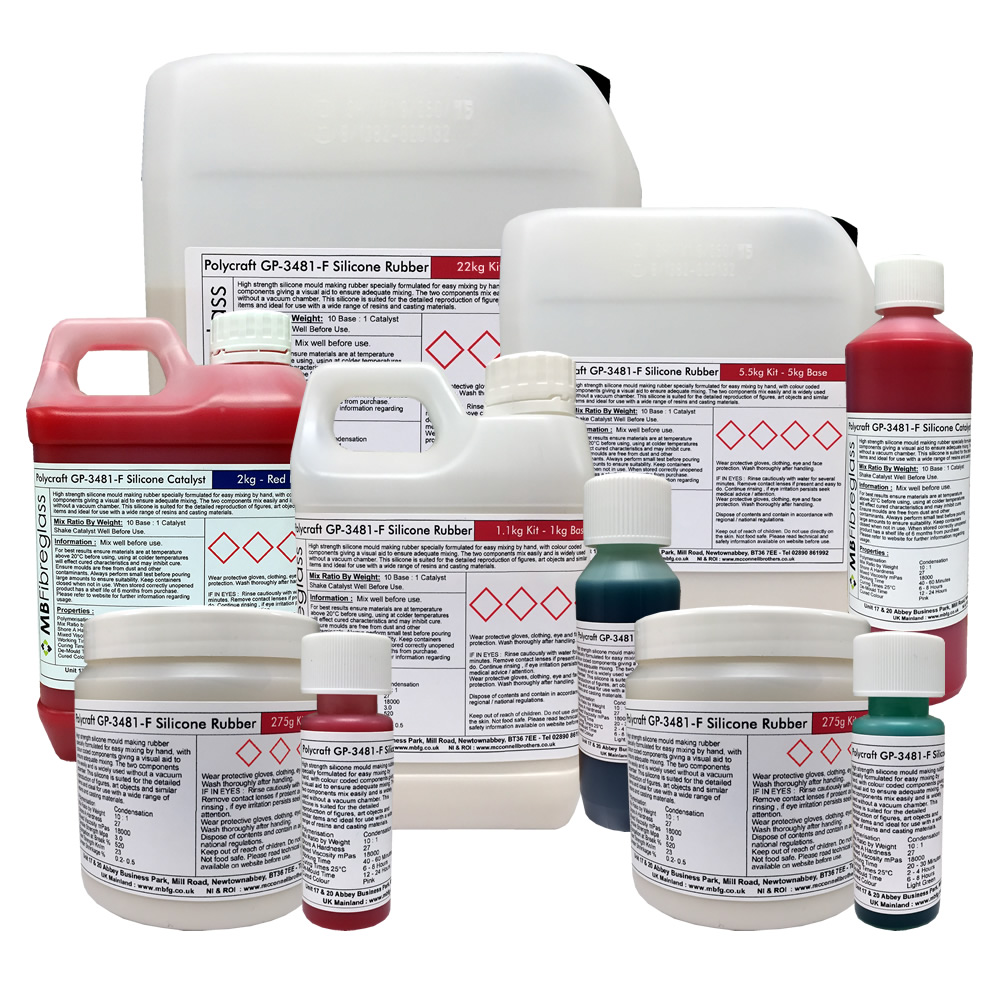

High strength silicone mould making rubber. Our silicone has been formulated for easy mixing by hand, with colour coded components (red or green) giving a visual aid to ensure mixing is adequate. The two components mix easily and because of the low viscosity most grades can be used without processing in a vacuum chamber. This silicone is suited for the detailed reproduction of figures, art objects and similar items.
Features :
Outstanding release properties
High Flowabilty and long working time
Medium Hardness
High tear resistance
High elasticity for easy removal of complex replica parts
Can be made thixotropic (non flowable) for vertical surface replication
Cured Properties of MBFG Silicone
- Red silicone catalyst is by far the most popular catalyst to use with the GP-3481-F silicone, it gives great air release with longer working and demould times.
- Clear catalyst is used when pigments are required, when mixing pigments into a white silicone base it can result in lighter shades of the colour intended. e.g black pigment will become grey / dark grey.
- Green silicone catalyst is used when time is off importance, it will cure a lot quicker roughly in half the time, but this will not give as good of air release as the red fast set catalyst.
NOTE - When using clear catalyst, best to double mix the silicone and catalyst because it is very hard to see if the catalyst has fully mixed through, so a double mix is advised.
| | Red Fast Catalyst | Clear Fast Catalyst | Green Very Fast Catalyst |
| Mix Ratio | 10 : 1 | 10 : 1 | 10 : 1 |
| Working Time | 40 - 60 Minutes | 40 - 60 Minutes | 20 - 30 Minutes |
| Curing Times | 6 - 8 Hours @ 25° | 6 - 8 Hours @ 25° | 2 - 4 Hours @ 25° |

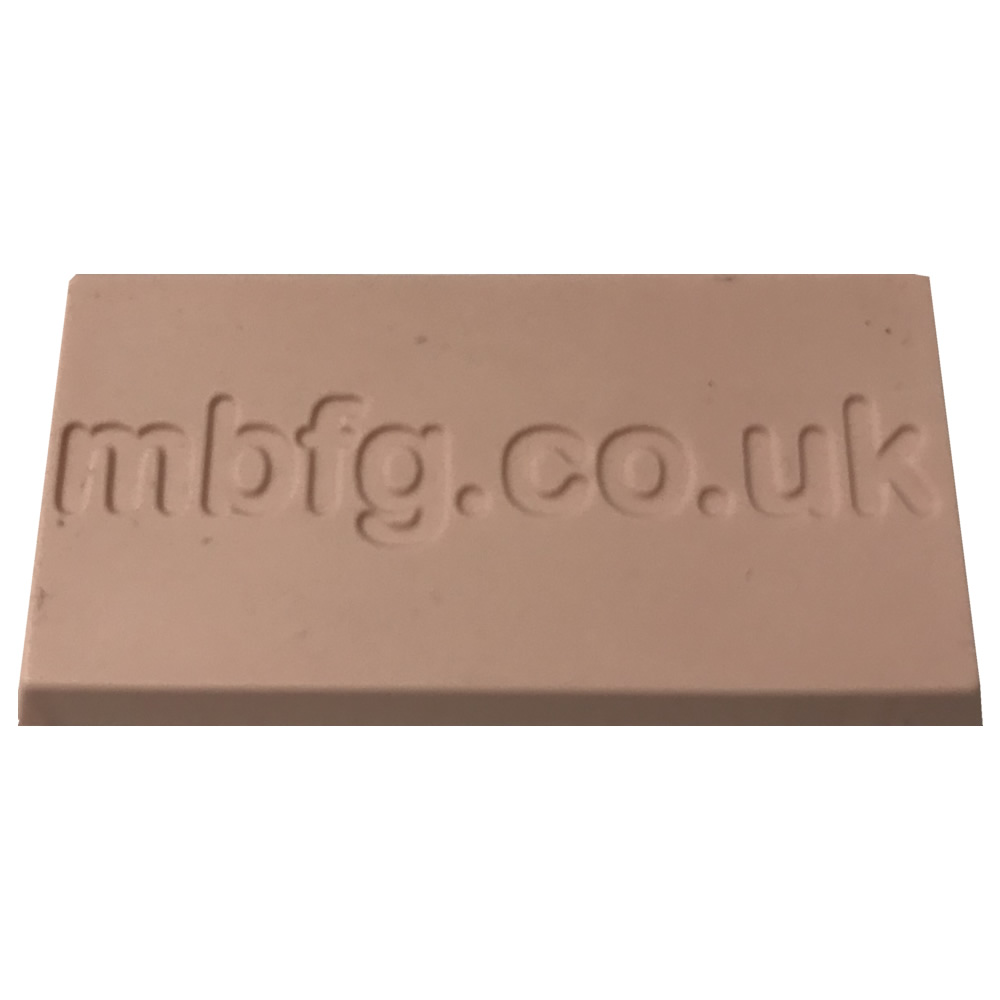

| Cured Colour | Light Pink | White | Light Green |
| De-Mould Time | 12 - 24 Hours | 12 - 24 Hours | 6 - 8 Hours |
| Mixed Viscosity mPas | 18000 | 18000 | 18000 |
| Hardness Shore A | 27 | 27 | 27 |
| Tensile Strength Mpa | 3.0 | 3.0 | 3.0 |
| Elongation @ Break % | 520 | 520 | 520 |
| Tear Strength kN/m | 23 | 23 | 23 |
| Linear Shrinkage | 0.2-0.5 | 0.2-0.5 | 0.2-0.5 |
Kit Size's:

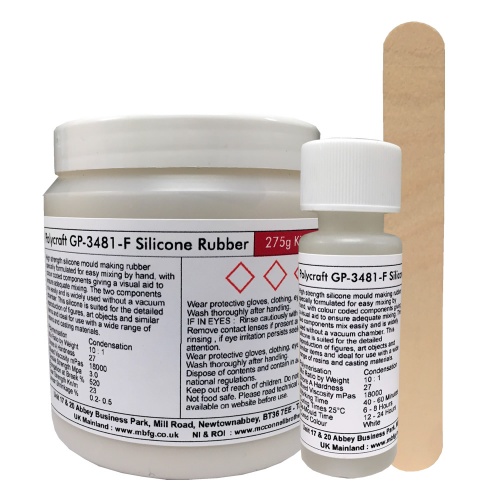

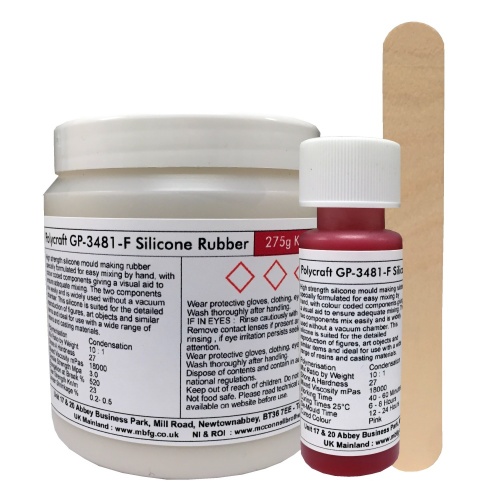

275g kit = 250g Silicone - 25g Catalyst

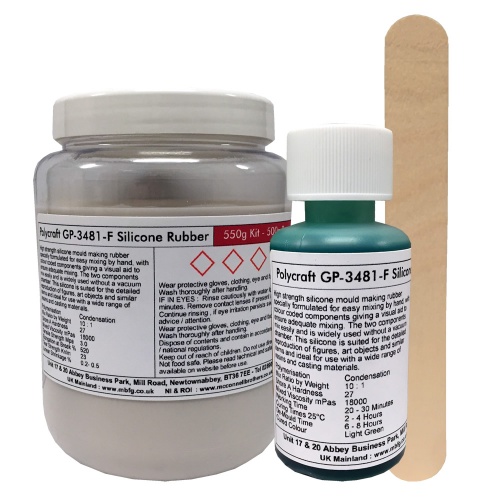

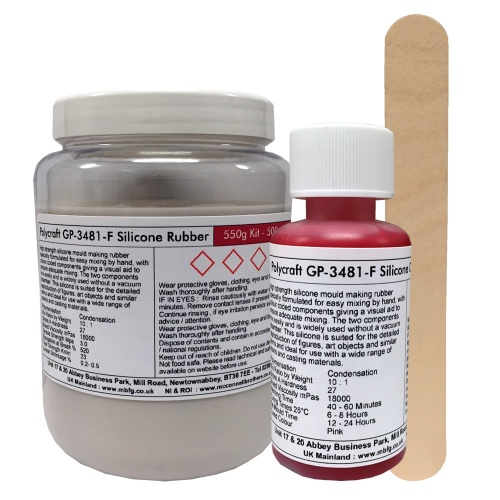

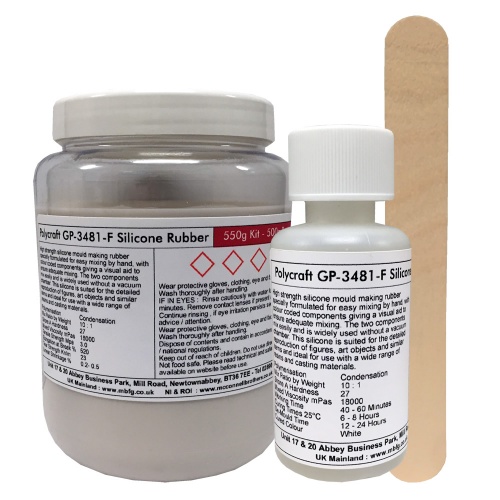

550g kit = 500g Silicone - 50g Catalyst

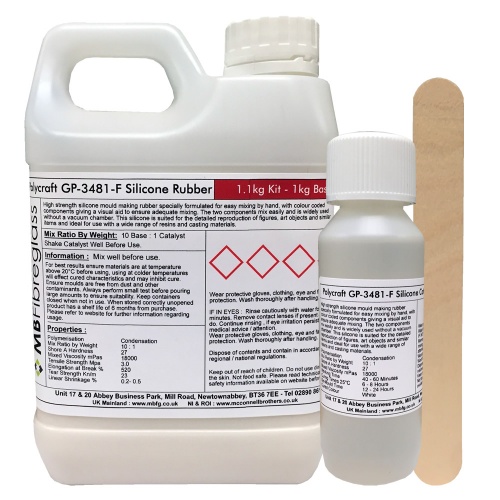

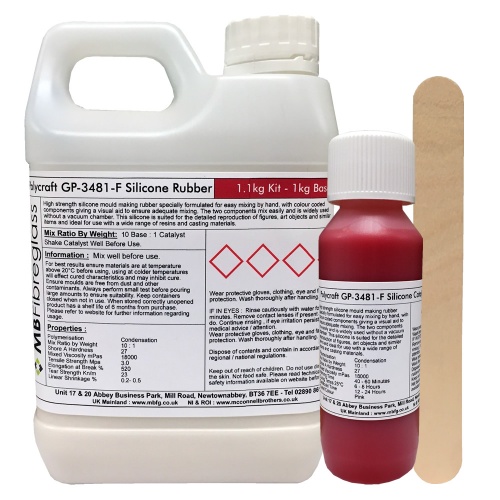

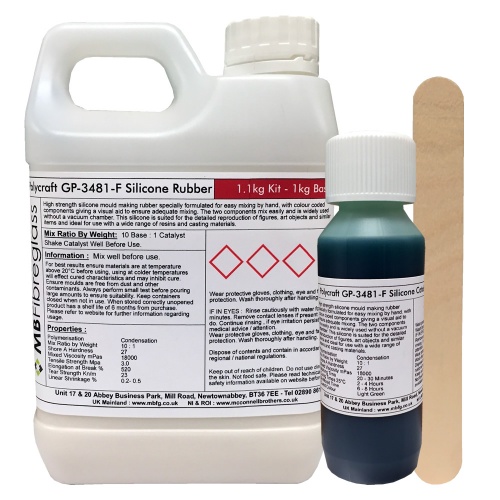

1.1kg kit = 1kg Silicone - 100g Catalyst

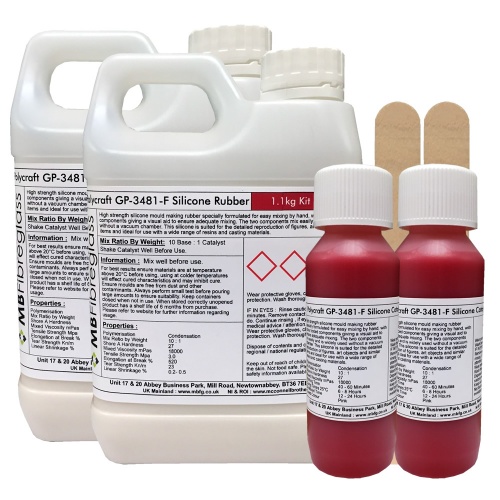

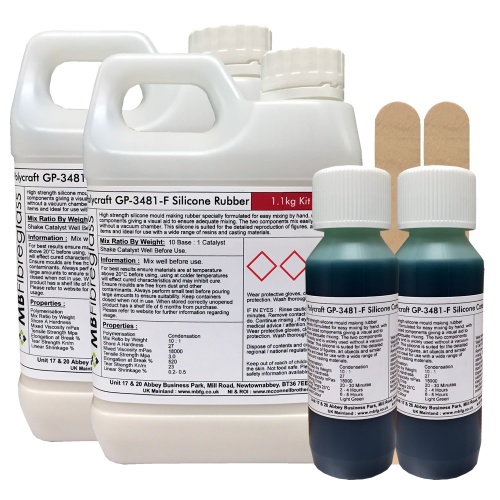

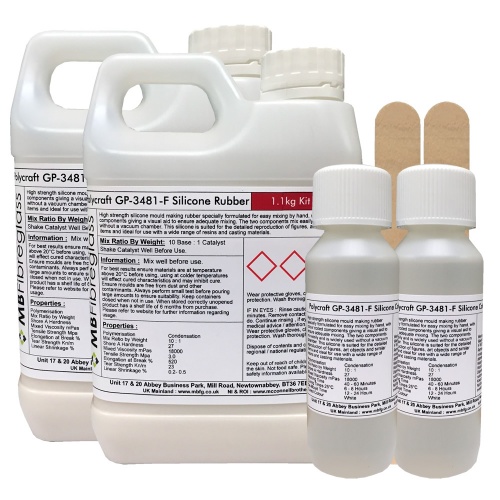

2.2kg kit = 2 x 1kg Silicone - 2x 100g Catalyst

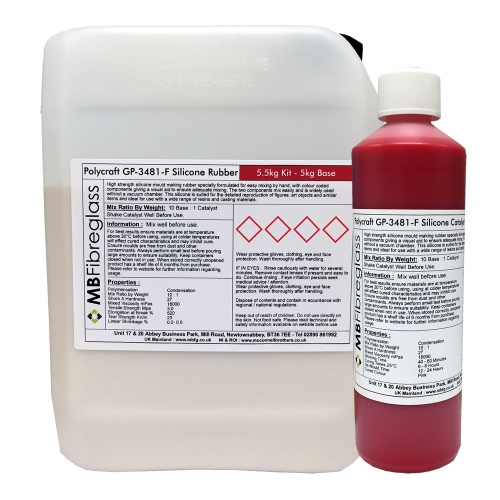

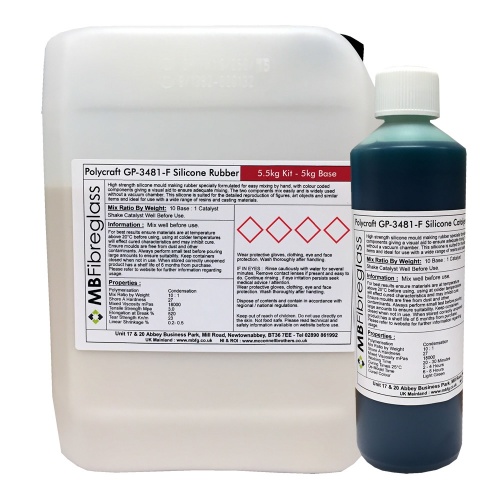

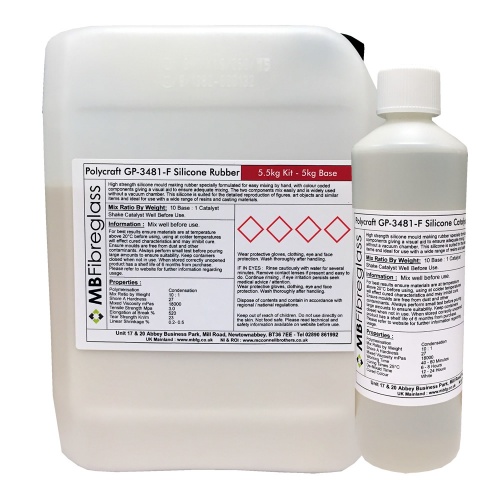

5.5kg kit = 5kg Silicone - 500g Catalyst

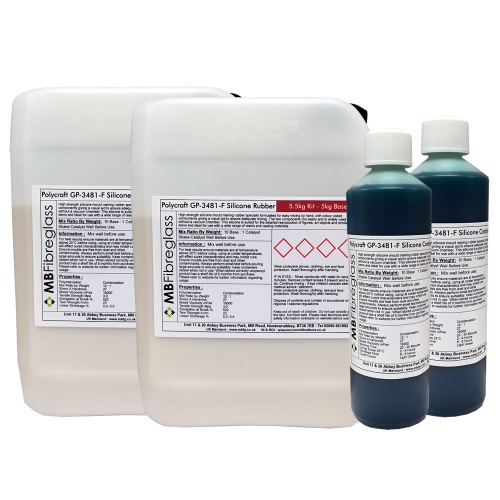

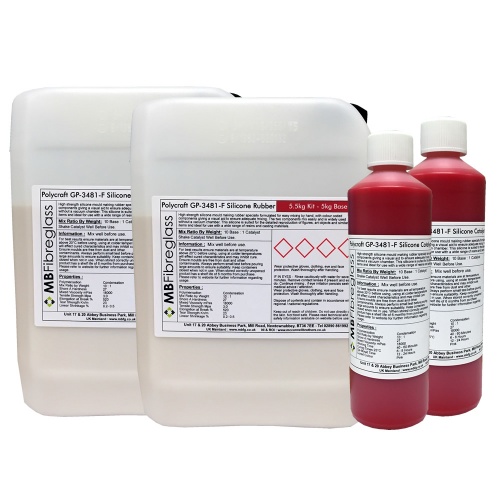

11kg kit = 2 x 5kg Silicone - 2 x 500g Catalyst

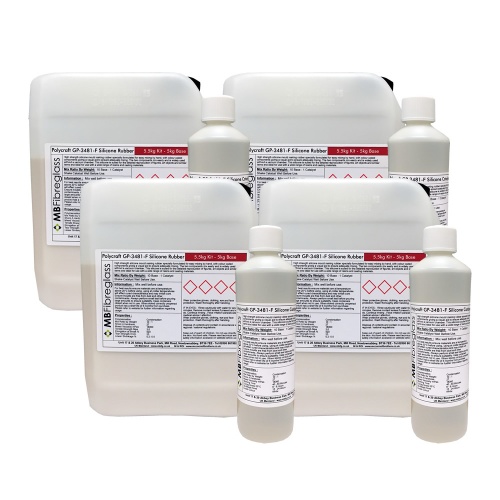

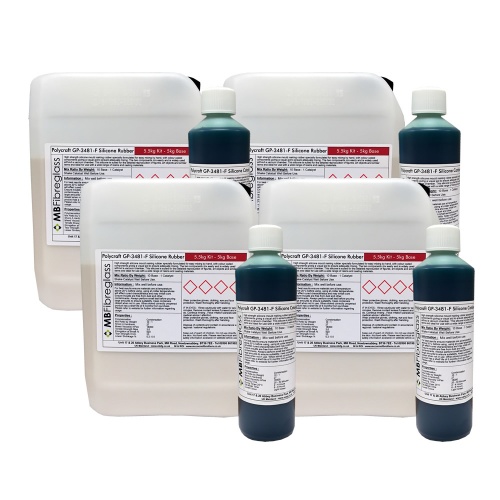

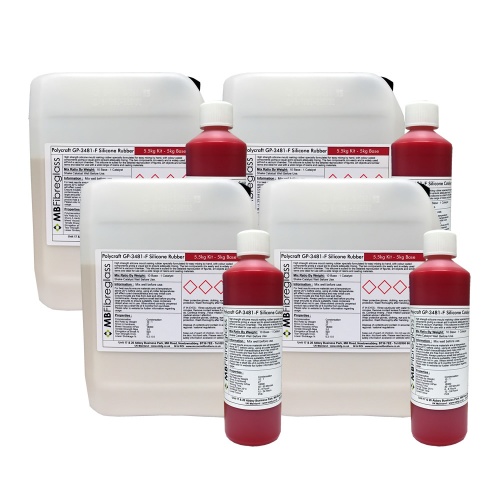

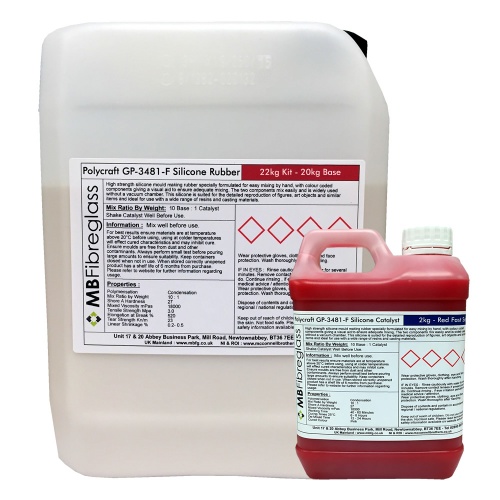

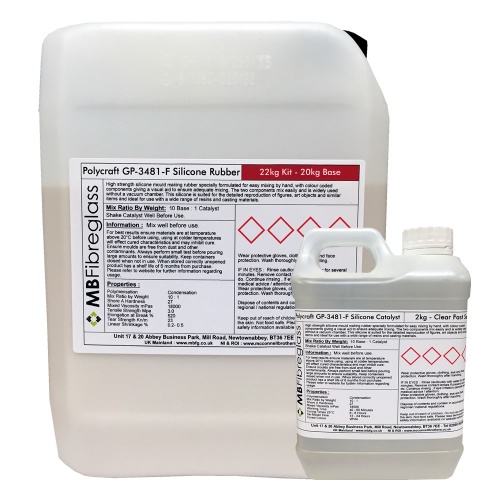

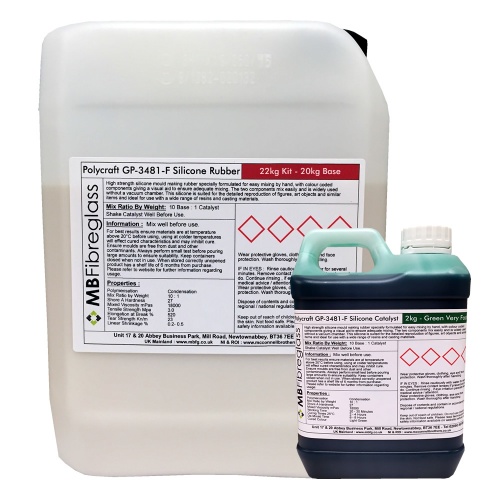

22kg kit = 20kg Silicone - 2kg Catalyst
250g of Silicone will fill approximately 200ml by volume
Instructions & data sheet downloads available under Technical & Safety Sheets on the tab above.
Please note this silicone is not suitable for food use. It is also not suitable for direct use on skin.
Base and catalyst use universal containers for various kit sizes and are supplied by weight, while the supplied containers may not be full, they will contain the correct amount of both base and hardener according to the listing. At point of packaging and dispatch lids may be taped to prevent damage or spillage during transportation.
